10kw 15kw Solar Energy Storage All In One Lifepo4 Battery Packs 24v 48v With Inverter

Brand Name : FBC

Model Number : YT

Certification : UN38.3,MSDS

Place of Origin : China

MOQ : 2

Price : 1500~2500 Dollar/item

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/item/day

Delivery Time : 14~28work days

Packaging Details : Carton cushioning material Product

Battery : lifepo4

inverter : 5KW

capacity : 5kwh

customization services : OEM/ODM

current : 200ah

voltage : 48v

Contact Now

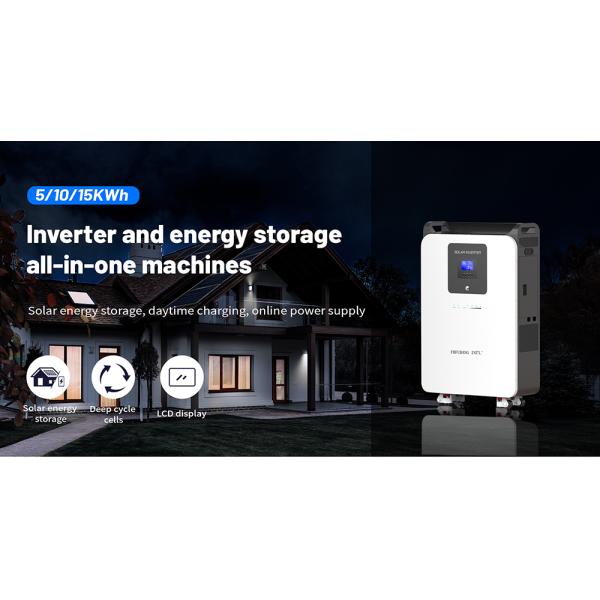

Solar inverter energy storage battery all-in-one


The integrated design of inverter and battery reduces the use of space and installation time

A-class quality battery, built-in BMS, LCD display, safe, simple operation, can increase WIFI APP remote control

Professional technical team and sales team to ensure pre-sales and after-sales service

10 years of offline production experience to meet all kinds of OEM/ODM customization services

10kw 15kw Solar Energy Storage All In One Lifepo4 Battery Packs 24v 48v With Inverter
10kw 15kw Solar Energy Storage All In One Lifepo4 Battery Packs 24v 48v With Inverter

Grid module
Rated input voltage220/230Vac
Input voltage range

(170Vac~280Vac) ±2%

(90Vac-280Vac)±2%

frequency50Hz/ 60Hz (Automatically detects)
Frequency range

47±0.3Hz ~ 55±0.3Hz (50Hz);

57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protectiondisconnect
efficiency>95%
Transfer time (bypass and inverter)10ms (Typical value)
AC backfill protectionYES
Maximum bypass overload current40A
Inverter module
Output voltage waveformpure sine wave
Rated output power5000 (VA)
Power Factor1
Rated output voltage230Vac
Output voltage error±5%
Output frequency range

50Hz ± 0.3Hz

60Hz ± 0.3Hz

Efficiency>92%
Overload protection

(102%< load <125%) ± 10%: report an error and shut down the output after 5 minutes;

(125%< load <150%) ± 10%: report an error and shut down the output after 10 seconds;

Load >150% ±10%: report an error and shut down the output after 5 seconds;

peak power10000VA
On-load motor capacity

4HP

Battery voltage range40.0Vdc~60Vdc ± 0.6Vdc (Under-voltage alarm / shutdown voltage / the over-voltage alarm/over-voltagerenew…LCD Screen can be set)
Power saving modeload≤50W
Grid charging
maximum-charging current (can be set)60A
Charging current error± 5Adc
charging voltage range40 – 58Vdc
Short circuit protectionCircuit breakers and blown fuses
Circuit Breaker Specifications40A
Overcharge protectionAlarm and turn off charging after 1 minute
Solar change
Maximum PV ,Open circuit voltage145Vdc
PV Operating voltage range60-145Vdc
MPPT voltage range60-115Vdc
Battery voltage range40-60Vdc
Maximum input power4400W
Solar charging current range (can be set)

0-80A

Charging short circuit protectionblow fuse
Wiring protectionreverse polarity protection
Maximum Hybrid Charge Current( PV+AC)
Maximum hybrid charge Current (can be set)0-140A
Other Specification
Range of working temperature range-15°C to 55°C
Storage temperature range-25°C ~ 60°C
Humidity range5% to 95% (Three anti-paint protection)
Noise≤60dB
Heat dissipationForced air cooling, adjustable wind speed
Communication interfaceUSB/RS485(WiFi/GPRS)/Dry Node Control


10kw 15kw Solar Energy Storage All In One Lifepo4 Battery Packs 24v 48v With Inverter
10kw 15kw Solar Energy Storage All In One Lifepo4 Battery Packs 24v 48v With Inverter
